Product Summary
The 1N4148 is a high-speed diode. It is suitable for high-speed switching.
Parametrics
Absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 100V max; (2)VR, continuous reverse voltage: 100V max; (3)IF, continuous forward current: 200mA max; (4)IFRM, repetitive peak forward current: 450mA max; (5)Ptot, total power dissipation: 500 mW max when Tamb = 25℃; (6)Tstg, storage temperature: -65 to +200℃; (7)Tj, junction temperature: 200℃ max.
Features
Features: (1)Hermetically sealed leaded glass SOD27 (DO-35) package; (2)igh switching speed: max. 4 ns; (3)eneral application; (4)ontinuous reverse voltage: max. 100 V; (5)epetitive peak reverse voltage: max. 100 V; (6)petitive peak forward current: max. 450 mA.

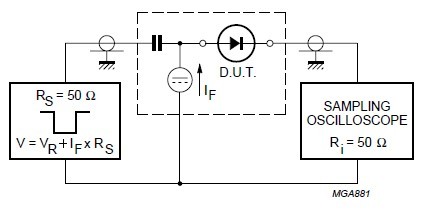

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1N4148,143 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) Diode Switching 100V 0.2A 2-Pin ALF |
Data Sheet |
|
|
|||||||||||||
1N4148_L99Z |
Fairchild Semiconductor |
Rectifiers Hi Conductance Fast |
Data Sheet |
Negotiable |
|
|||||||||||||
1N4148_NT50A |
Fairchild Semiconductor |
Rectifiers 100V Io/200mA BULK |
Data Sheet |
Negotiable |
|
|||||||||||||
1N4148_T26R |
Fairchild Semiconductor |
Rectifiers Hi Conductance Fast |
Data Sheet |
Negotiable |
|
|||||||||||||
1N4148TR |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 100V Io/150mA T/R |
Data Sheet |
|
|
|||||||||||||
1N4148W |
Taiwan Semiconductor |
Diodes (General Purpose, Power, Switching) Switching diode 400 mW |
Data Sheet |
|
|
|||||||||||||
1N4148-P-TAP |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 100 Volt 500mA 4ns |
Data Sheet |
|
|
|||||||||||||
1N4148W-GS08 |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 100V Io/150mA T/R |
Data Sheet |
Negotiable |
|
