Product Summary

The STTH110A is a high voltage ultrafast rectifier. It is specially suited for free-wheeling, clamping, snubbering, demagnetization in power supplies and other power switching applications.

Parametrics

Absolute maximum ratings: (1)Repetitive peak reverse voltage:1000 V; (2)RMS voltage:700 V; (3)Average forward current:1A; (4)Forward surge current:18A; (5)Storage temperature range:- 50℃ to +175℃; (6) Maximum operating junction temperature:+175℃.

Features

Features: (1)Low forward voltage drop; (2)High reliability; (3)High surge current capability; (4)Soft switching for reduced EMI disturbances; (5)Planar technology.

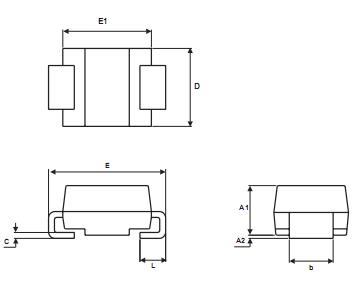

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STTH110A
STTH110A
STMicroelectronics
Rectifiers 1.0 Amp 1000 Volt
Data Sheet
0-1: $0.22
1-10: $0.19
10-100: $0.15
100-250: $0.14
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STTH10002TV1
STTH10002TV1
STMicroelectronics
Rectifiers ULTRAFAST RECOVERY DIODE
Data Sheet
0-1: $10.15
1-10: $9.84
10-100: $9.20
100-250: $8.96
STTH10002TV2
STTH10002TV2
STMicroelectronics
Rectifiers ULTRAFAST RECOVERY DIODE
Data Sheet
0-1: $10.15
1-10: $9.84
10-100: $9.20
100-250: $8.96
STTH1002CB
STTH1002CB
STMicroelectronics
Rectifiers 2x8 Amp 200 Volt
Data Sheet
0-1: $0.43
1-10: $0.38
10-100: $0.32
100-250: $0.30
STTH1002CB-TR
STTH1002CB-TR
STMicroelectronics
Rectifiers 2x8 Amp 200 Volt
Data Sheet
0-1700: $0.27
1700-2500: $0.25
2500-5000: $0.23
5000-10000: $0.22
STTH1002CBY-TR
STTH1002CBY-TR

DIODE ULT FAST 200V 8A DPAK
Data Sheet
0-1: $0.74
1-10: $0.65
10-25: $0.59
25-100: $0.51
100-250: $0.45
250-500: $0.40
500-1000: $0.32
STTH1002C
STTH1002C
Other

Data Sheet
Negotiable
