Product Summary

The 1SMA5934BT3G is a 1.5 Watt plastic surface mount zener voltage regulator.

Parametrics

Absolute maximum ratings: (1)DC power dissipation @TL=75℃: 1.5W; measured zero lead lentgh derate above 75℃: 20mW/D: 20mW/℃; (2)thermal resistance, junction-to-lead, RθJL: 50℃/W; (3)DC power dissipation @TA=25℃, PD: 0.5W; derate above 25℃: 4.0mW/℃; (4)thermal resistance, junction-to-ambient, RθJA: 250℃/W; (5)operating and storage temperature range, TJ, Tstg: -65 to +150℃.

Features

Features: (1)Standard Zener Breakdown Voltage Range - 3.3 V to 68 V; (2)ESD Rating of Class 3 (>16 kV) per Human Body Model; (3)Flat Handling Surface for Accurate Placement; (4)Package Design for Top Slide or Bottom Circuit Board Mounting; (5)Low Profile Package; (6)Ideal Replacement for MELF Packages; (7)Pb-Free Packages are Available.

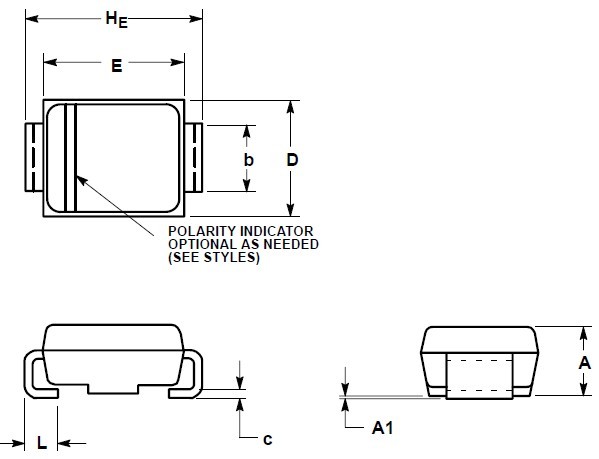

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

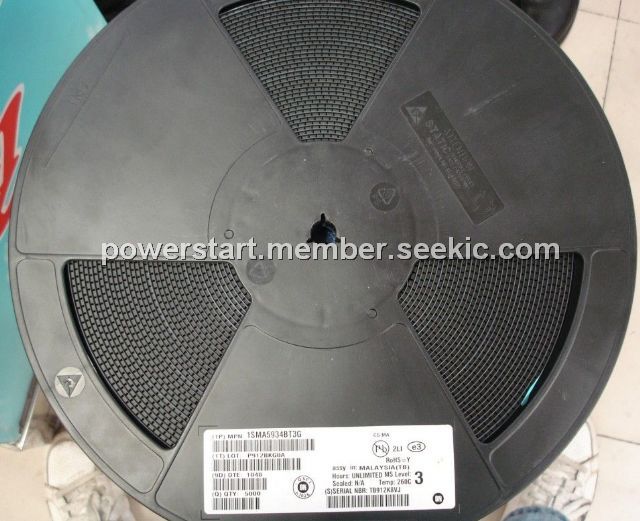

1SMA5934BT3G
1SMA5934BT3G
ON Semiconductor
Zener Diodes 24V 1.5W
Data Sheet
0-1: $0.22
1-25: $0.16
25-100: $0.12
100-500: $0.10
