Product Summary

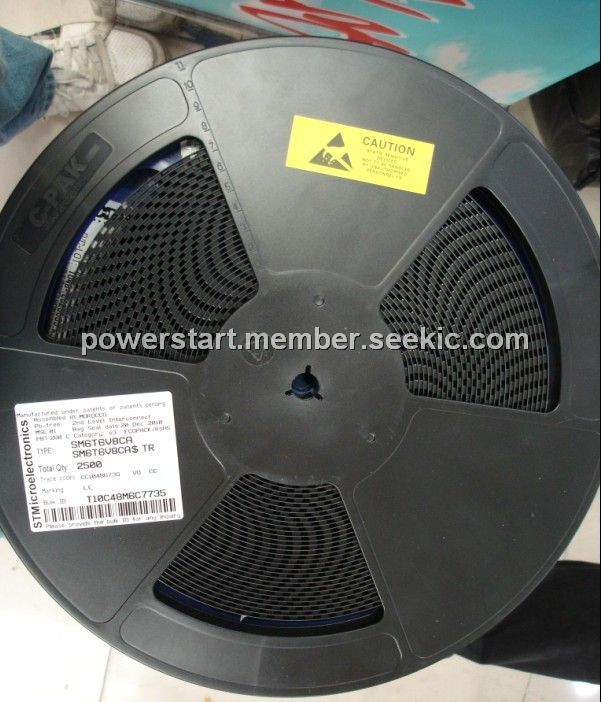

The SM6T6V8CA is a Transil diode. It provides high overvoltage protection by clamping action. It is particularly suited to protect voltage sensitive devices.
Parametrics
Absolute maximum ratings: (1)PPP, Peak pulse power dissipation, Tj initial = Tamb: 600 W; (2)P, Power dissipation on infinite heatsink, Tamb = 50℃: 5 W; (3)IFSM, Non repetitive surge peak forward current for unidirectional types, tp = 10ms, Tj initial = Tamb: 100 A; (4)Tstg: Storage temperature range: - 65 to + 175℃; (5)Tj, Maximum junction temperature: 150 ℃; (6)TL, Maximum lead temperature for soldering during 10 s: 260 ℃.
Features
Features: (1)peak pulse power: 600W (10/1000ms); (2)breakdown voltage range: from 6.8V to 220V; (3)uni and bidirectional types; (4)low clamping factor; (5)fast response time; (6)UL recognized.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SM6T6V8CA |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V Bidirect |
Data Sheet |
|
|
||||||||||||||
 |
SM6T6V8CA/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Bidir |
Data Sheet |
|
|
||||||||||||||
|
SM6T6V8CA/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Bi |
Data Sheet |
|
|
||||||||||||||
|
SM6T6V8CA/55 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SM6T6V8CA/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SM6T6V8CA/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SM6T6V8CA-E3/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Bi |
Data Sheet |
|
|
||||||||||||||
|
SM6T6V8CAHE3/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Bidir |
Data Sheet |
|
|
||||||||||||||
