Product Summary

The DZ2S082-NL is a zener diode with Silicon epitaxial planar type which is for constant voltage / waveform clipper and surge absorption circuit Low noise type.

Parametrics

DZ2S082-NL absolute maximum ratings: (1)Repetitive peak forward current: 200 mA; (2)Total power dissipation: 150 mW; (3)Junction temperature: 150 ℃; (4)Storage temperature: –55 to +150 ℃.

Features

DZ2S082-NL features: (1)Excellent rising characteristics of zener current Iz; (2)Contributes to miniaturization of sets, reduction of component count; (3)Eco-friendly Halogen-free package.

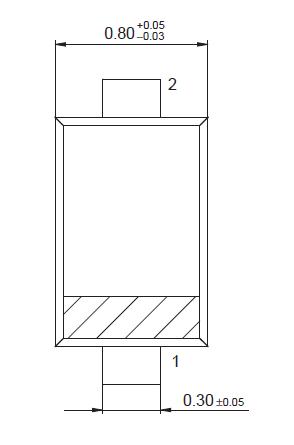

Diagrams
