Product Summary

The SS115 is a 1.0 AMP. surface mount schottky barrier rectifier. It is suitable for surface mounted application. Its package is SOP8.

Parametrics

Absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage, VRRM: 150V; (2)Maximum RMS Voltage, VRMS: 105V; (3)Maximum DC Blocking Voltage, VDC: 150V; (4)Maximum Average Forward Rectified Current at TL, I(AV):1.0A; (5)Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ), IFSM: 30A; (6)Typical Junction Capacitance, Cj: 50pF; (7)Operating Temperature Range, TJ: -65 to +150℃; (8)Storage Temperature Range, TSTG: -65 to +150℃.

Features

Features: (1)For surface mounted application; (2)Metal to silicon rectifier, majority carrier conduction; (3)Low forward voltage drop; (4)Easy pick and place; (5)High surge current capability; (6)Plastic material used carriers Underwriters Laboratory Classification 94V-O; (7)Epitaxial construction; (8)High temperature soldering: 260℃/ 10 seconds at terminals.

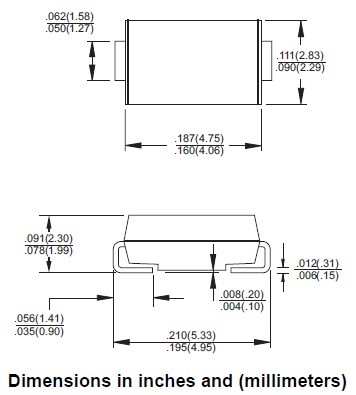

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SS1150-LTP
SS1150-LTP

DIODE SCHOTTKY 150V 1A DO214AC
Data Sheet
0-1: $0.26
1-10: $0.21
10-100: $0.14
100-250: $0.12
250-500: $0.10
500-1000: $0.07
1000-2500: $0.07
SS115
SS115
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 1A,150V,SMD SCHOTTKY Rect
Data Sheet
0-15000: $0.04
