Product Summary

The STPS3150U is a 150 V Power Schottky rectifier. It is suited for switch mode power supplies on up to 24 V rails and high frequency converters.

Parametrics

Absolute maximum ratings: (1)Repetitive peak reverse voltage:150V; (2)Average forward current:3A; (3)Surge non repetitive forward current:100A; (4)Storage temperature range:-65℃ to + 175℃; (5)Operating junction temperature:175℃.

Features

Features: (1)Negligible switching losses; (2)Low forward voltage drop for higher efficiency and extented battery life; (3)Low thermal resistance.

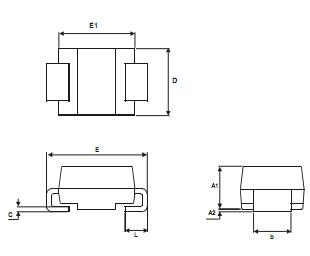

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

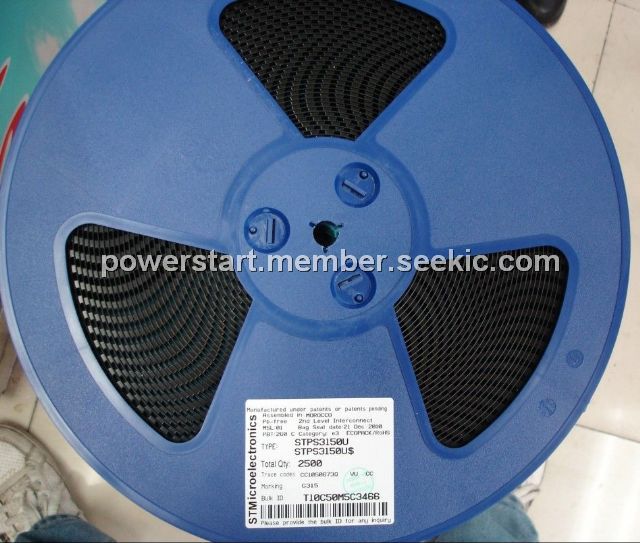

STPS3150U
STPS3150U
STMicroelectronics
Schottky (Diodes & Rectifiers) 3.0 Amp 150 Volt
Data Sheet
0-1: $0.19
1-10: $0.17
10-100: $0.15
100-250: $0.15
STPS3150UF
STPS3150UF
STMicroelectronics
Schottky (Diodes & Rectifiers) Pwr SCHOTTKY RECTIFIER
Data Sheet
0-1: $0.22
1-10: $0.20
10-100: $0.17
100-250: $0.17
STPS3150UY
STPS3150UY

DIODE SCHOTTKY 150V 3A SMB
Data Sheet
0-1: $0.46
1-10: $0.40
10-25: $0.36
25-100: $0.31
100-250: $0.27
250-500: $0.23
500-1000: $0.18
