Product Summary
The P6SMB6.8A is a transient voltage suppression diode. It is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Parametrics
Absolute maximum ratings: (1)Peak Pulse Power Dissipation at TA=25oC by 10x1000μs waveform, PPPM: 600 W; (2)Power Dissipation on infinite heat sink at TA=50℃, PM(AV): 5.0 W; (3)Peak Forward Surge Current, 8.3ms Single Half Sine Wave, IFSM: 100 A; (4)Maximum Instantaneous Forward Voltage at 50A for Unidirectional only, VF: 3.5V/5.0 V; (5)Operating Junction and Storage Temperature Range, TJ, TSTG: -65 to 150 ℃; (6)Typical Thermal Resistance Junction to Lead, RuJL: 20 ℃/W; (7)Typical Thermal Resistance Junction to Ambient, RuJA: 100 ℃/W.
Features
Features: (1)halogen-free; (2)RoHs compliant; (3)for surface mounted applicatons to optimize board space; (4)low profile package; (5)built-in straion relief; (6)glass passivated chip junction; (7)fast response time; (8)excelletn clamping capability; (9)low incremental surge resistance; (10)high temperature soldering guaranteed.

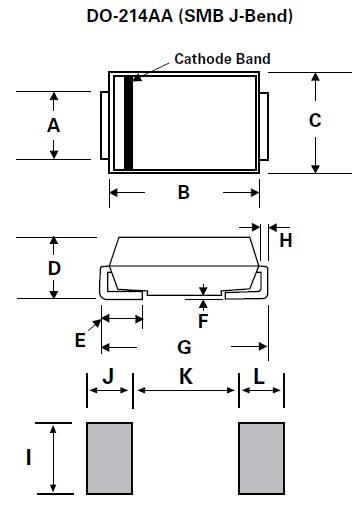

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

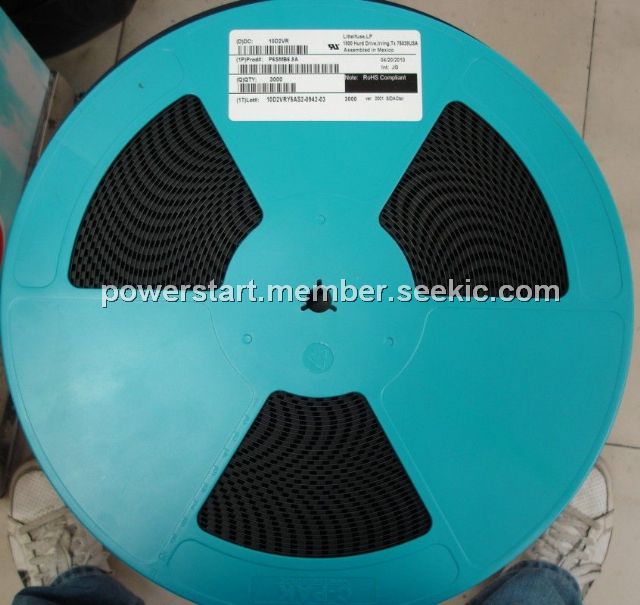

 P6SMB6.8A |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors TVS SURF MT DO214AA |
Data Sheet |
|
|
||||||||||||||
 |
P6SMB6.8A/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Unidir |
Data Sheet |
|
|
||||||||||||||
 |
P6SMB6.8A/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V Unidirect |
Data Sheet |
|
|
||||||||||||||
|
P6SMB6.8A/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Unidir |
Data Sheet |
|
|
||||||||||||||
|
P6SMB6.8A/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V Unidirect |
Data Sheet |
|
|
||||||||||||||
|
P6SMB6.8A/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||||
|
P6SMB6.8A-E3/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V Unidirect |
Data Sheet |
|
|
||||||||||||||
|
P6SMB6.8A-E3/5B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 6.8V Unidirect |
Data Sheet |
|
|
||||||||||||||
